Punched articles
Valve Flaps

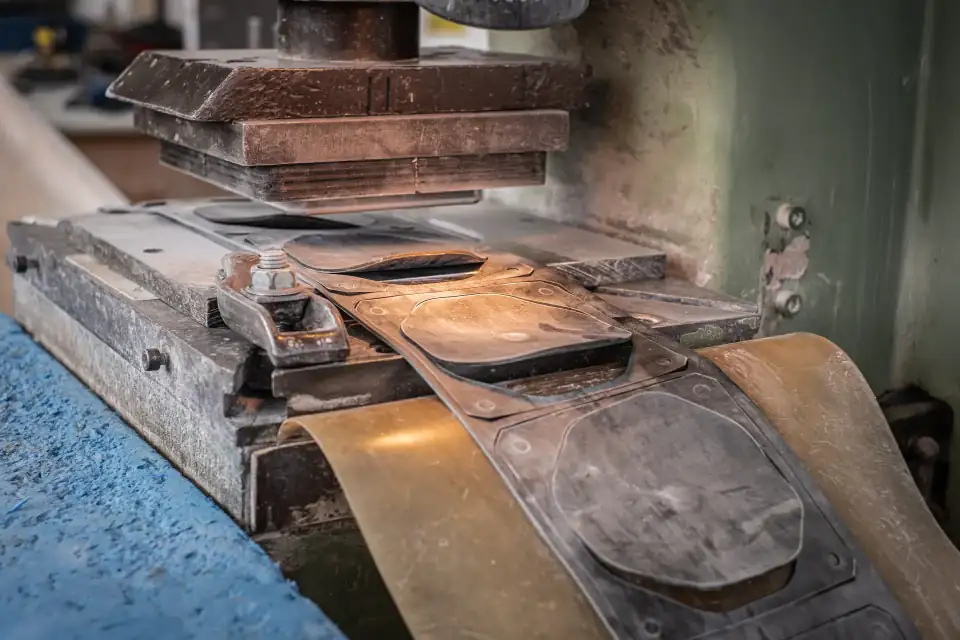

SIEGEL Dichtungen is your manufacturer of valve flaps, also known as ventilation flaps, for vent grilles, frames and panels for commercial vehicles of all kinds. Using punching tools of our own design, we manufacture thin valve flaps from a material thickness of 0.3 mm.
Materials
Various elastomers & TPE
Approvals
Automotive manufacturer standards
Manufacturing
Punched
Series
Small to large series
Your benefits
Why Valve Flaps from SIEGEL
Custom manufacturing
Custom-made seals, precisely matched to your requirements.
Wide range of materials
From NBR, CR and EPDM through cellular rubber and sponge rubber to silicone, FKM and graphite: the right solution for every application, on request also to various standards and approvals.
Expert advice
We support you with material selection and design.
Short delivery times
Thanks to flexible production options and our own punching shop.
ISO 9001 certified
SIEGEL Dichtungen stands for ISO-certified quality.
Technical data
Product specifications
Specifications may vary depending on the material option. Contact us for further information or specific requirements.
Material
We process NR, SBR, NBR, CR and EPDM, among others. Further details in the materials overview or on request.
Temperature resistance
Resistant over a wide temperature range from -40 °C to +160 °C, for use in different environments, countries and applications.
Material thickness
Thin valve flaps from 0.3 mm, produced with punching tools of our own design.
Automotive standards
Material available to various common automotive standards.
Tools & contours
Punching tools of our own design ensure clean punched contours, especially with thin materials.
Documentation
Available with test report or inspection certificate, various QM documents and with IMDS entry.
Packaging
Neatly stacked in cartons, on request with cardboard layers to prevent slipping, e.g. for automated assembly.
Application
Mostly used in the automotive industry for vent grilles, frames and panels.
Your application
Special requirements for material or standard?
Tell us about your application, for example media, temperature ranges or standards. We recommend the material and the matching manufacturing process and provide samples in advance on request.
Materials & standards
Suitable materials & approvals
Valve Flaps are manufactured from the following materials and, on request, designed to meet the relevant standards and approvals. The linked pages provide details on properties, resistances and regulations.
Process
Manufacturing & processes
More on manufacturing & tolerances
Thin valve flaps of our own design
Valve flaps, also known as ventilation flaps, are used as vent grilles, frames and panels for commercial vehicles of all kinds. The flaps prevent the buffeting in the cabin that probably every driver knows when a window on one side is opened while driving.
With punching tools of our own design, we are able to manufacture thin valve flaps, starting at a material thickness of 0.3 mm. Special types of packaging are available, e.g. to enable automated assembly. The material is available to various common automotive standards.
